Motion F20
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
How we specify in Houston
Houston rooms set the constraint. New builds in the Heights and Bellaire often hide the screen in a soffit or a motorized drop, while Memorial and River Oaks remodels usually keep a fixed frame wall and a dedicated rack. We measure ceiling height, throw distance and seating position before naming a model. For the Motion F20 specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Bellaire, Memorial, River Oaks, The Heights, West University Place, Sugar Land, Spring Branch.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 44-3/4" x 11-3/4" x 14-1/4"; 112.7cm x 29.8cm x 36.2cm |
|---|---|
| Frequency Response | 35 Hz - 25kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 300 watts |
| Sensitivity | 92 dB |
| Impedance | 4 ohms |
| Crossover Frequency | 230 Hz, 2,600 Hz (3-way) |
| High Frequency Driver | 1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant sealed chamber format. Unibody cone construction. |
| Low Frequency Driver | 2x 6.5" (16.5cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Bottom Ported |
| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 60lbs / 27.2kg |

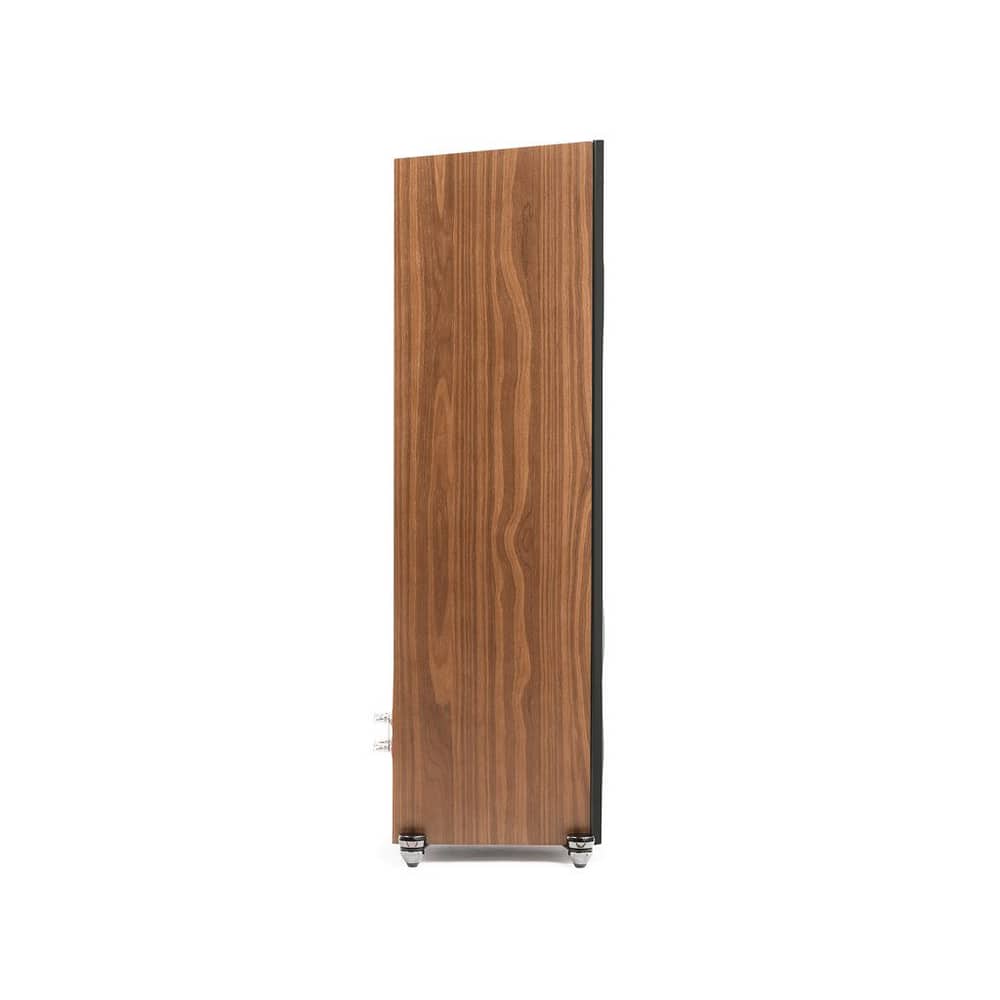

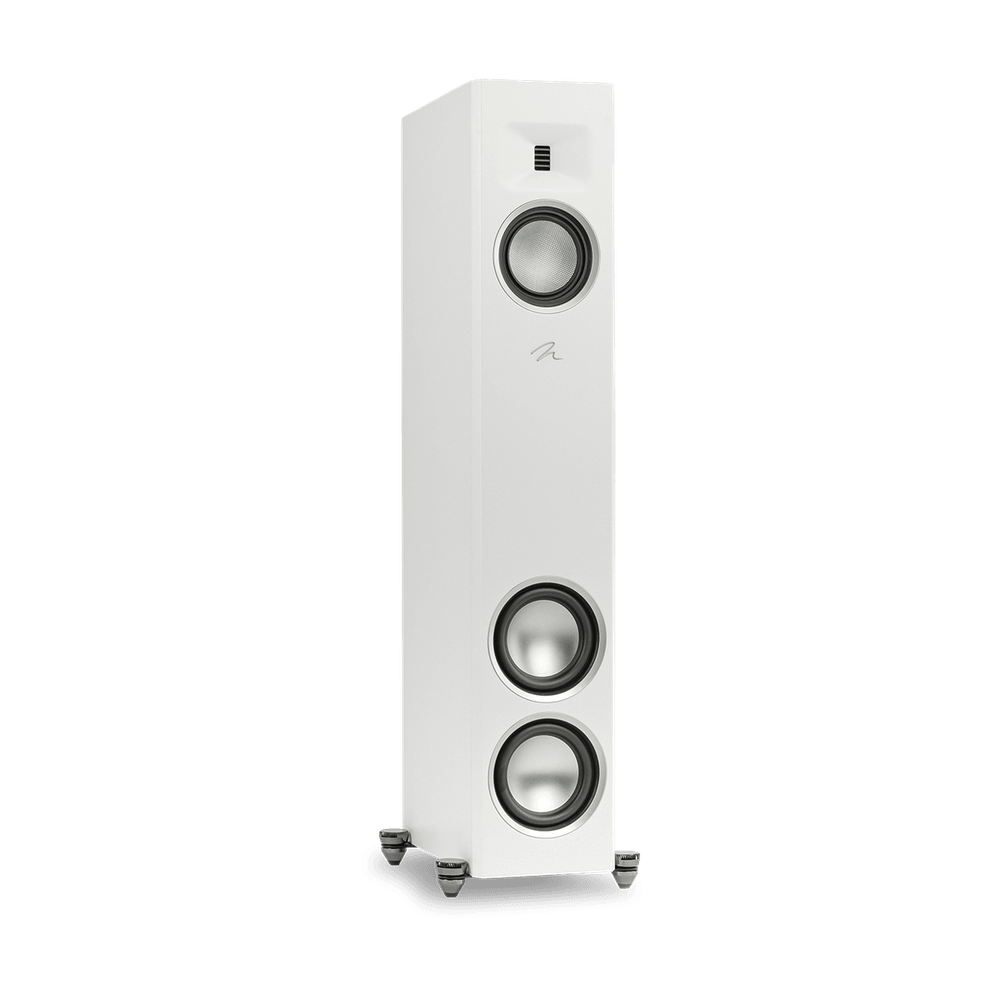

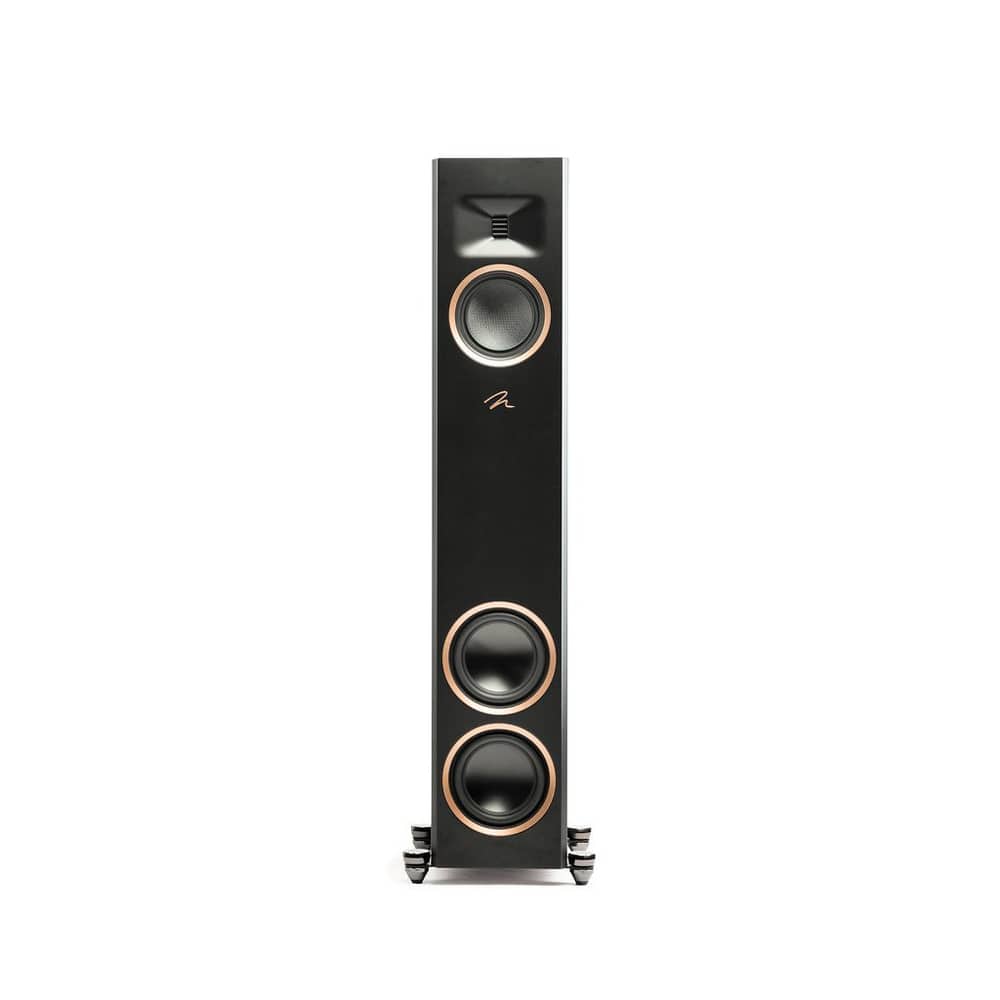

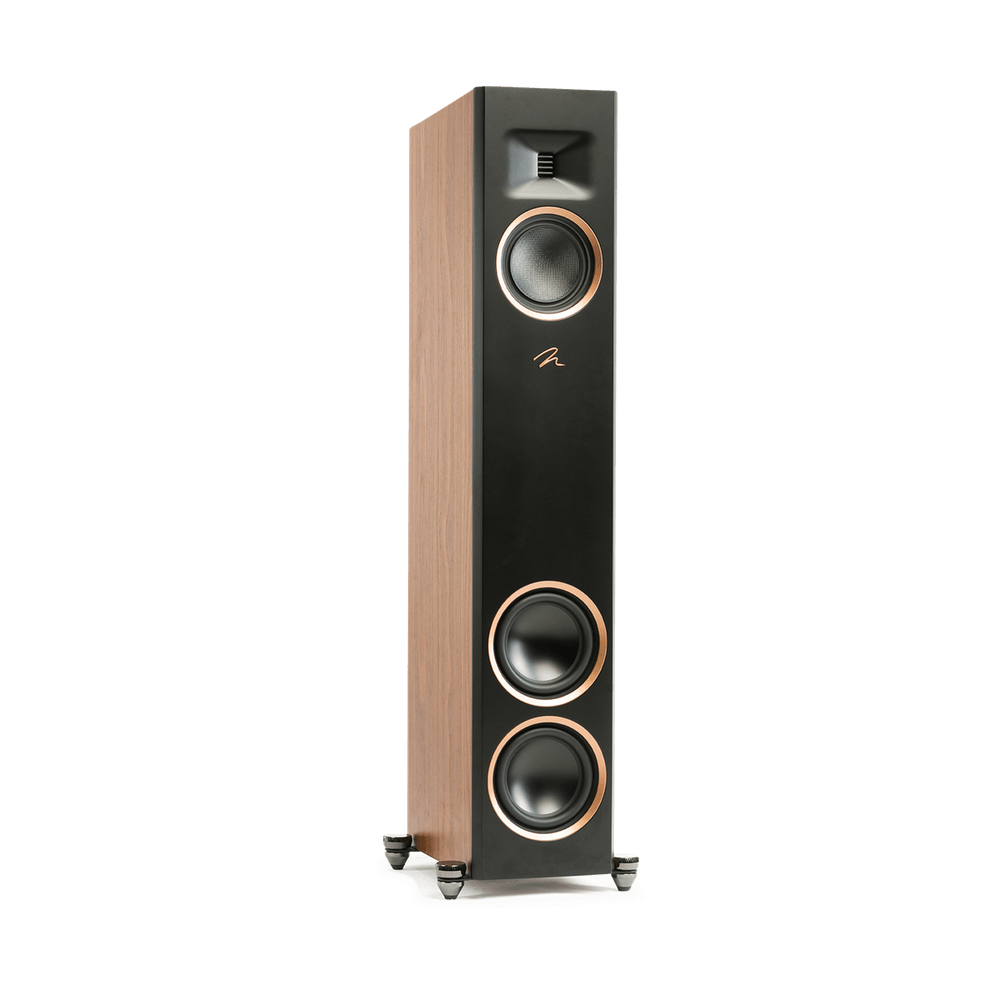

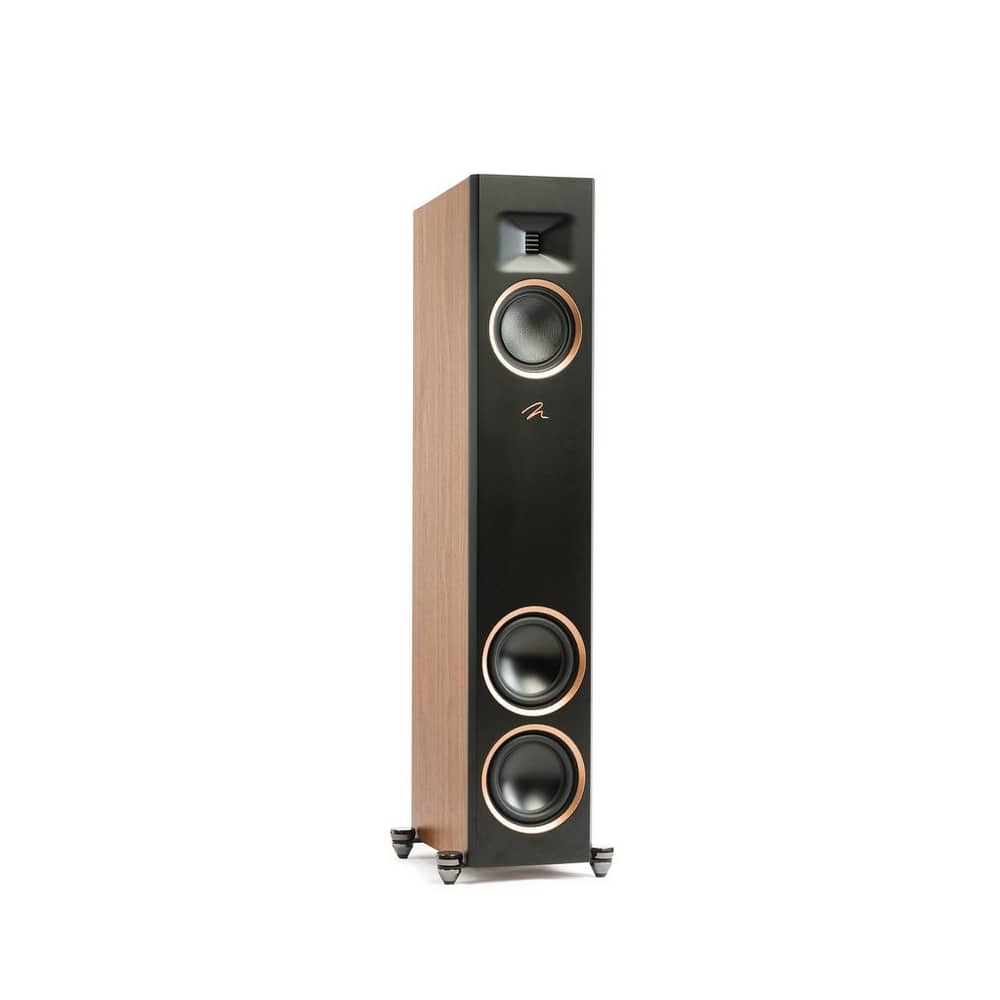

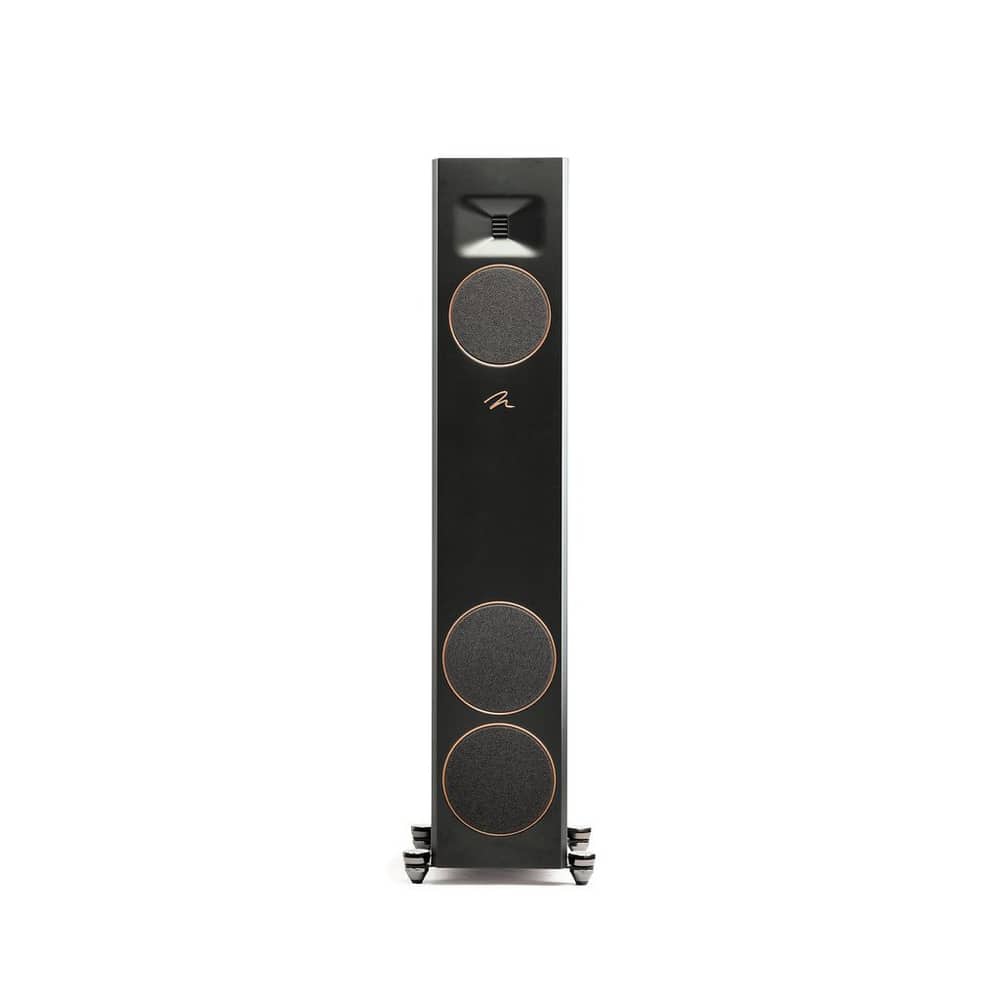

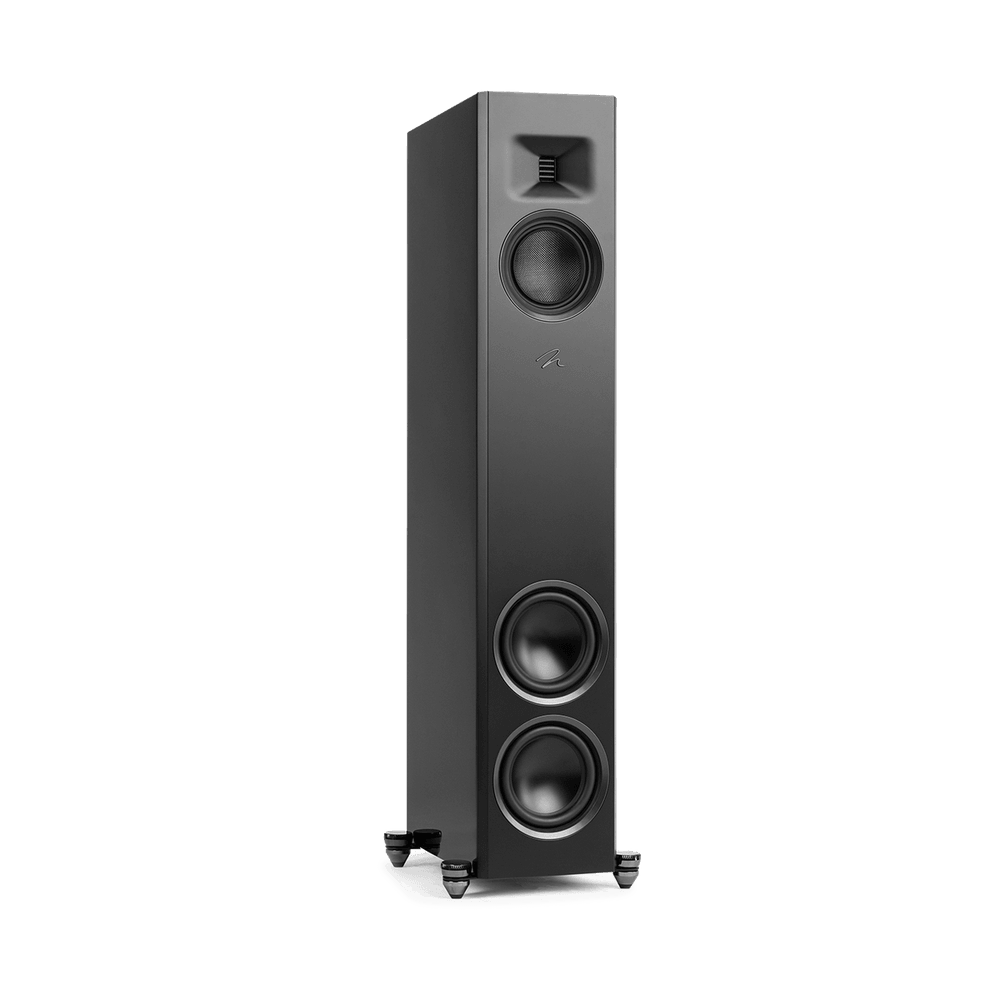

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter
- Folded Motion Waveguide

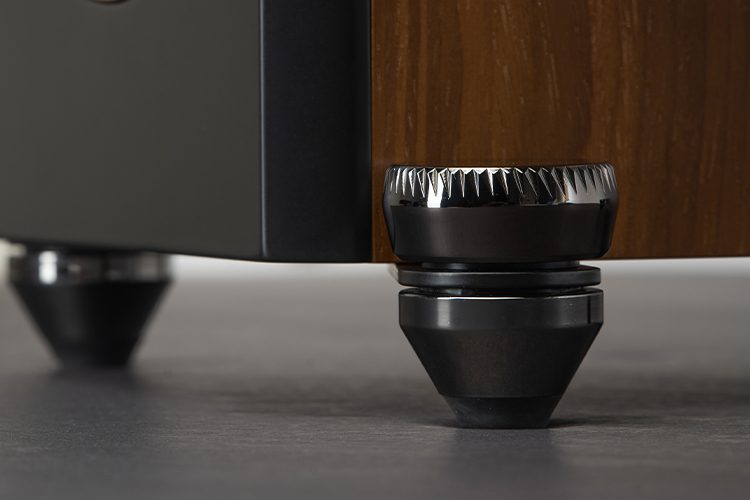

- F.A.S.T. Outrigger Feet

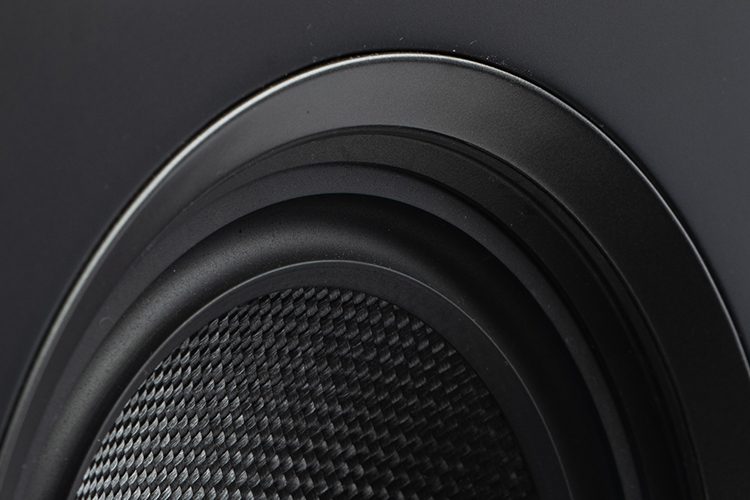

- Woven-Fiberglass Midrange
- Aluminum Bass Drivers
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
