MartinLogansubwoofers

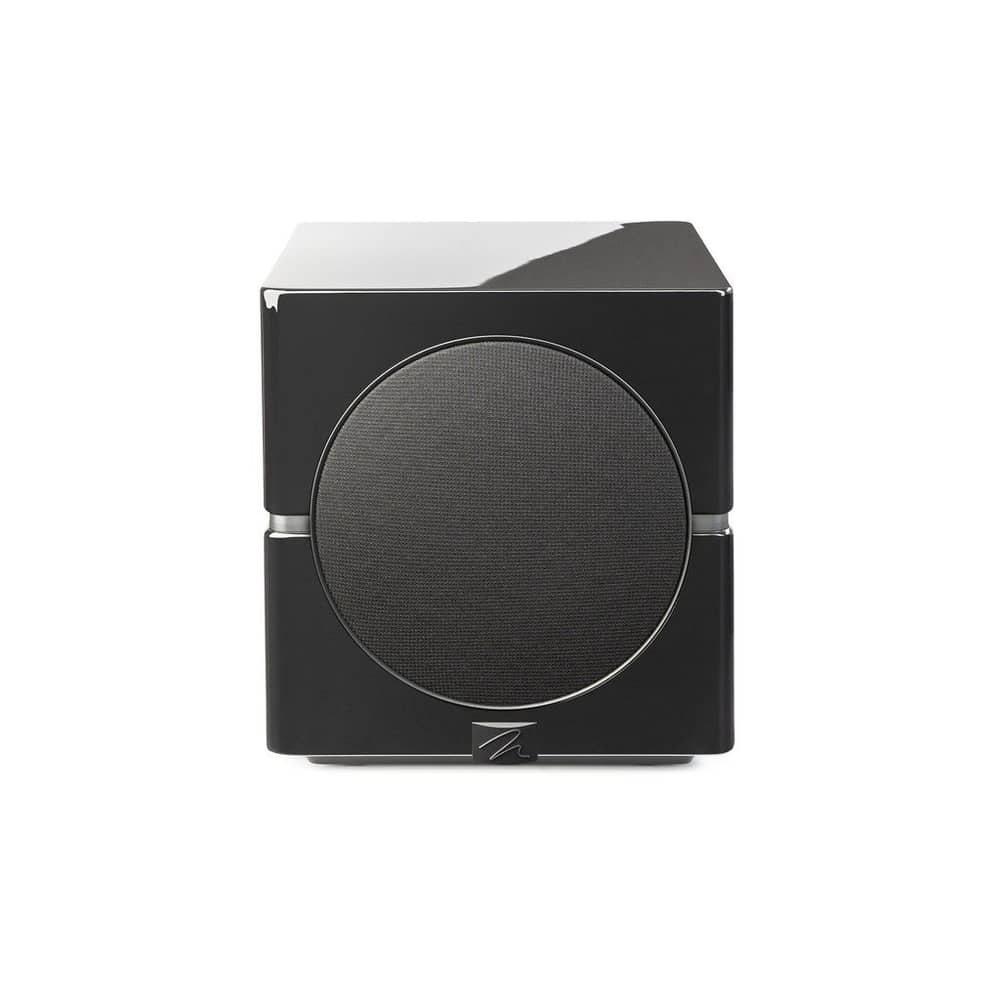

Dynamo 10
Impeccable Precision. Indisputable Quality.
Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.
How we specify in Houston
Houston rooms set the constraint. New builds in the Heights and Bellaire often hide the screen in a soffit or a motorized drop, while Memorial and River Oaks remodels usually keep a fixed frame wall and a dedicated rack. We measure ceiling height, throw distance and seating position before naming a model. For the Dynamo 10 specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Bellaire, Memorial, River Oaks, The Heights, West University Place, Sugar Land, Spring Branch.
Specifications
Specifications
| Digital Signal Processing | Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
|---|---|
| Frequency Response | 23-120 Hz ±3 dB (Anechoic via LFE input) |

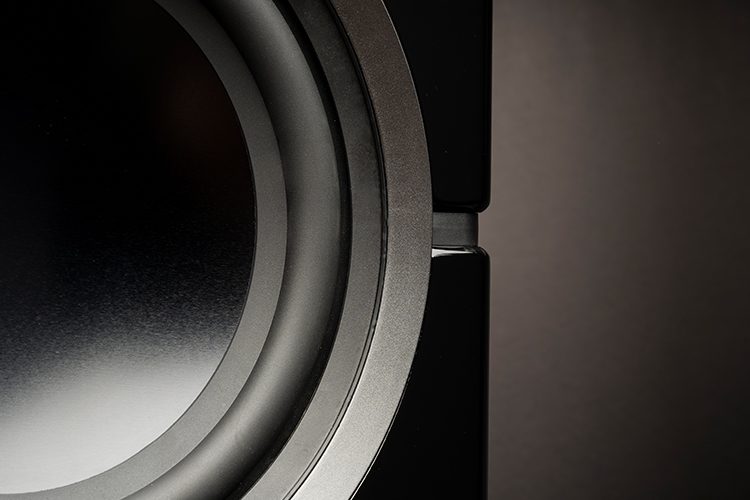

| Low Frequency Transducer | 10" (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket |
| Cabinet | Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle |
| Amplifier | Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous) |
| Controls (Backplate) | Level: Interactive LED Backlit Knob; Tone Sweep: Sweep Start and Pause (with status light); Power Mode: On, 12v Trigger, Auto; Wireless Audio Pairing Button (for included MartinLogan wireless transmitter) |
| Controls (via Bluetooth) | Level: -40 to 12dB (Min-Max); Low-Pass Filter (Frequency): 35-120Hz (1° Increments); Low-Pass Filter (Order): Bypass, Third, Fourth; Phase: 0-180° (1° Increments); Phase (Polarity): Normal, Inverted; Preset Listening Modes: Movie, Music, Night; 20-30Hz Level: ±10dB; Anthem Room Correction (ARC Genesis): On, Off; Tone Sweep (120-20Hz): On, Off, Pause (Frequency) |
| Wireless Inputs | Integrated Wireless Receiver, Wireless Transmitter Included |
| Inputs | Line Level: Left, Right, and LFE XLR: LFE; Speaker Level: Left and Right (requires banana plugs) |
| Power Draw | Max: 500W; Standby (Wireless Disabled): 0.5W; Standby (Wireless Enabled): <2W; *Transmitter and Subwoofer combined |
| Feet | Integrated Anti-Vibration Feet (carpet spikes included) |
| Weight | 42.8 lbs (19.4 kg) |
| Dimensions (H x W x D) | 14-3/4" x 13-3/4" x 13-3/4" (37.3cm x 34.8cm x 34.8cm) |

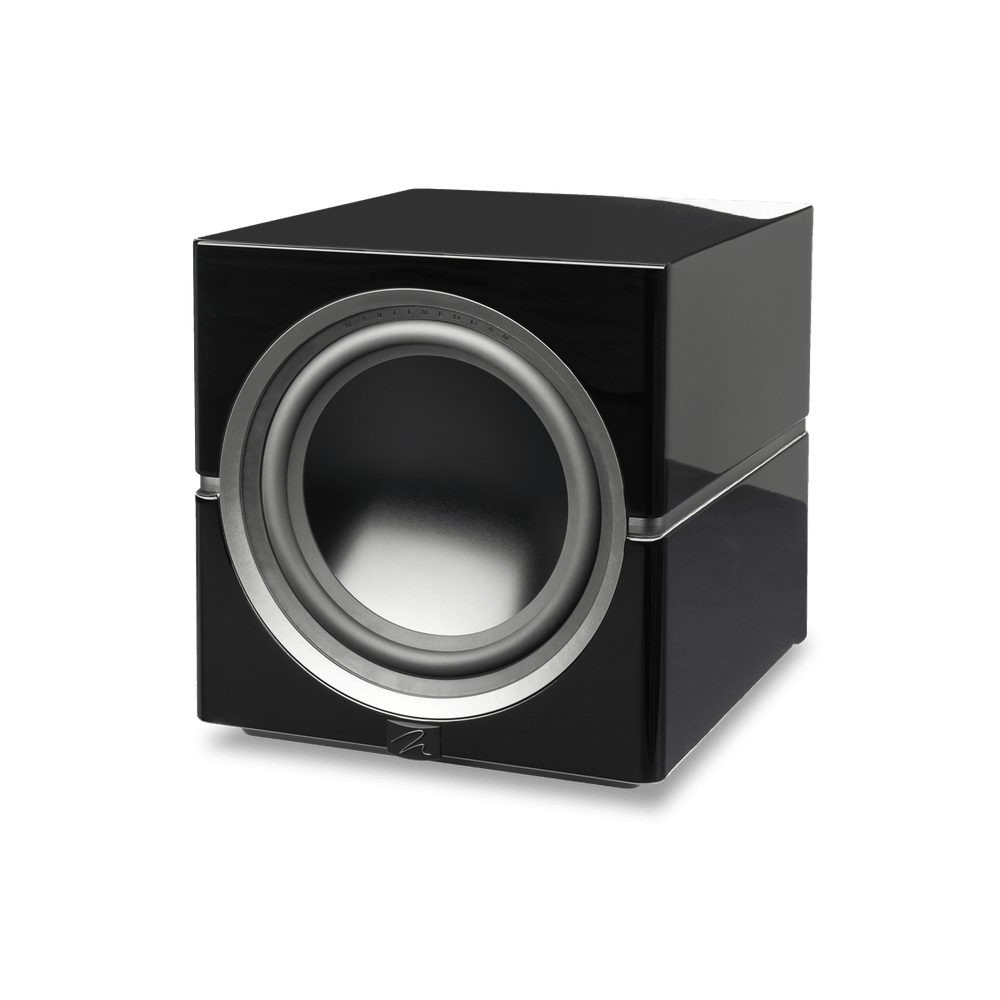

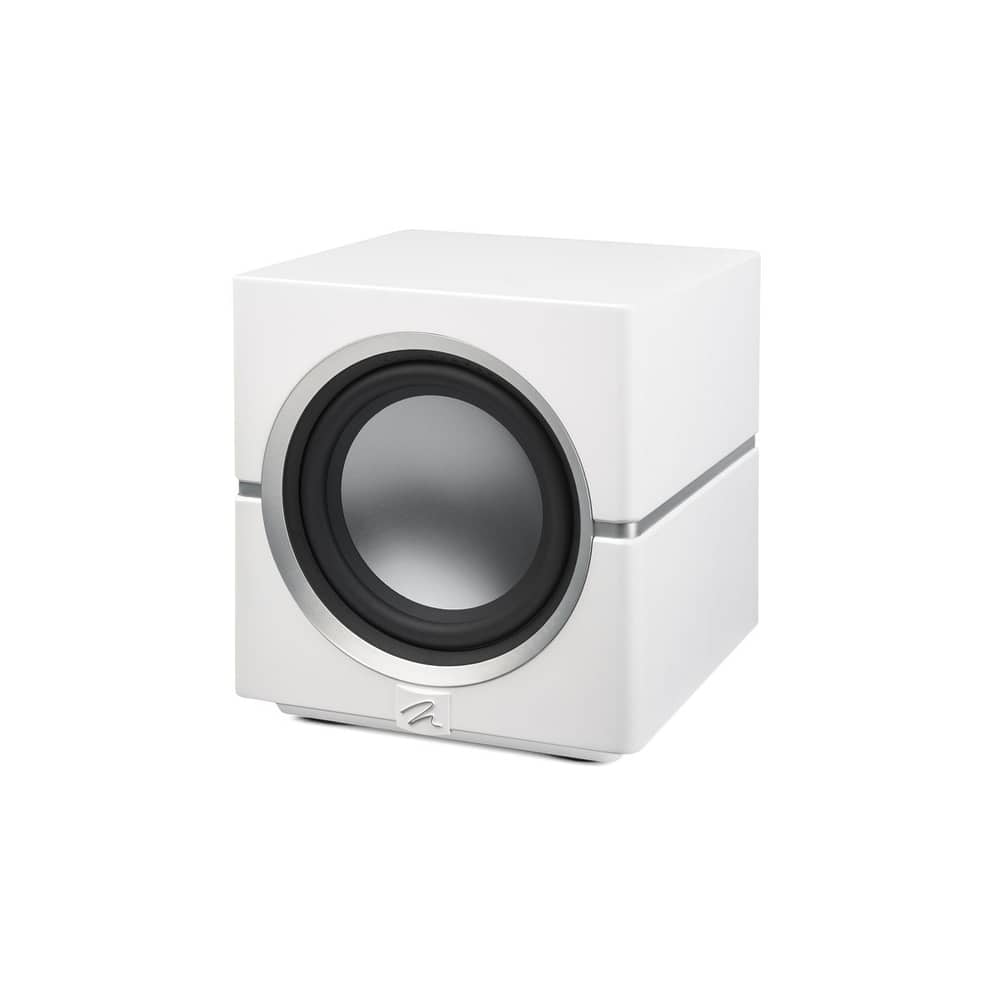

| Finish | Gloss Black or Satin White |
Features
- Seamlessly Integrating High-Performance Audio with Elegant Design
- Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
- Magnitude MT-1kW Amplifier
- Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
- Built-In Wireless Capability
- Sound Structure
- Robust Connectivity
- Reduced Vibration, Enhanced Bass
- Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
- Optimize Bass Performance with Award-Winning Anthem Room Correction
- Legendary Performance in Your Choice of Style
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
