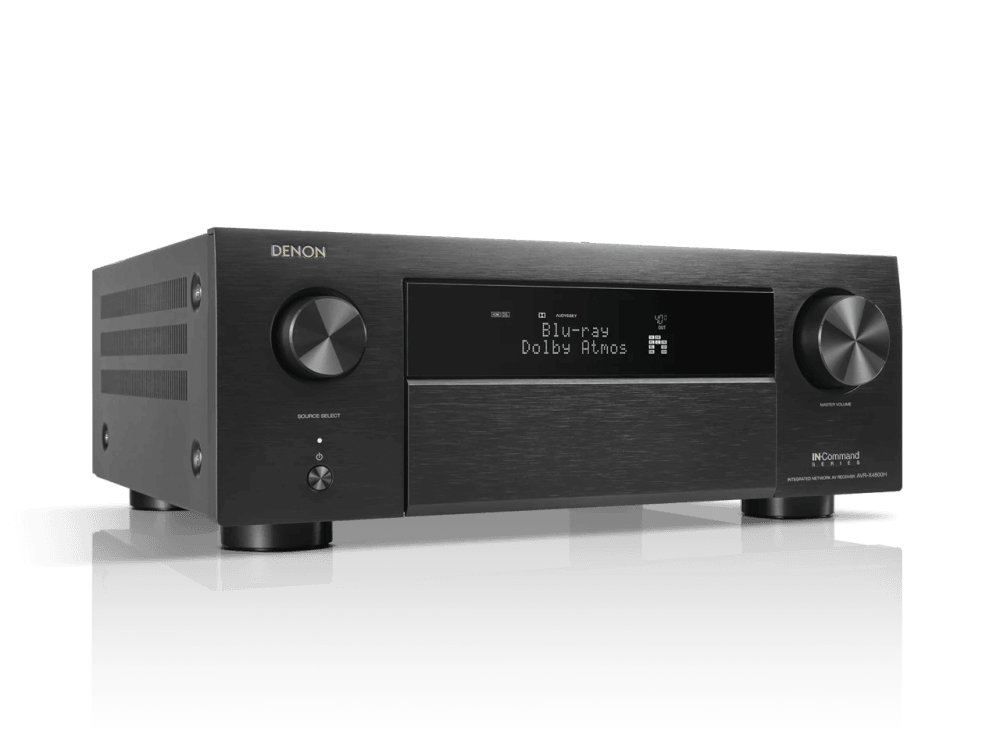

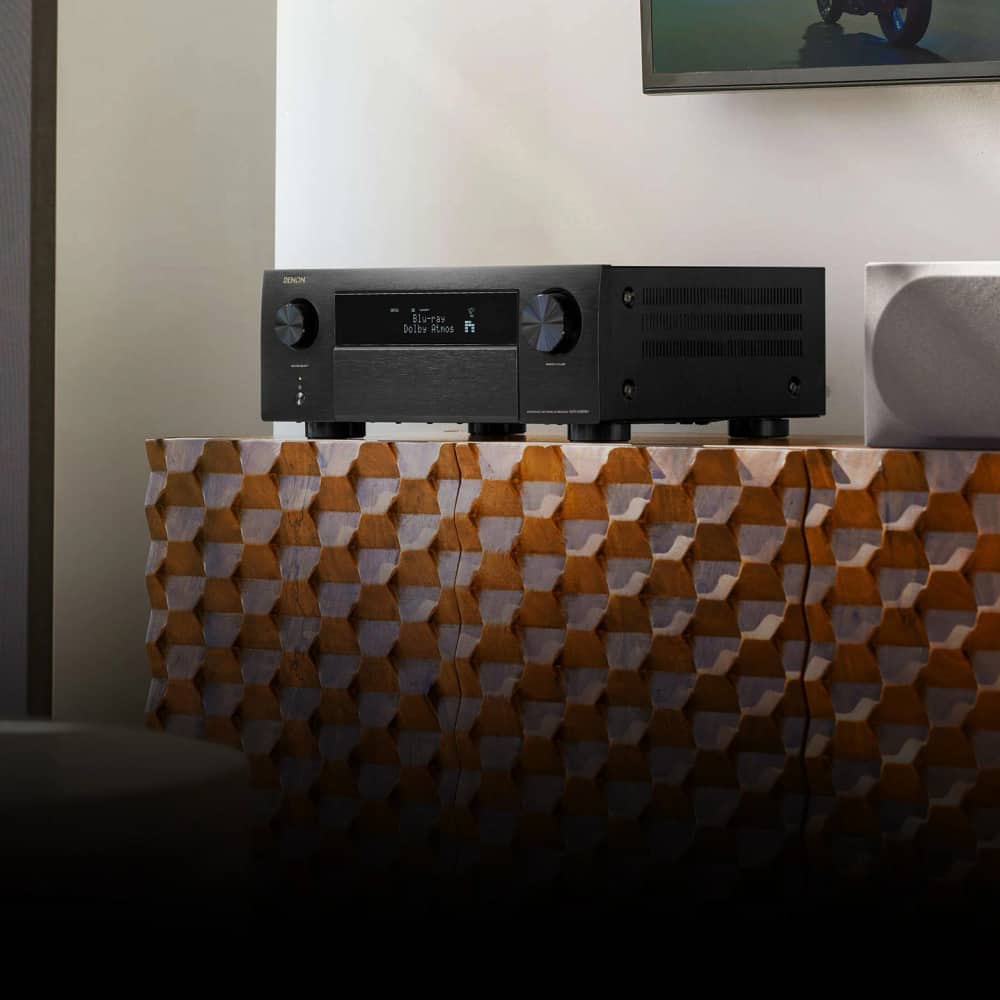

AVR-X4800H
Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X Pro, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS, wirelessly stream your favorite music.
MPN: 300608-01-00-101
How we specify in Houston
Houston rooms set the constraint. New builds in the Heights and Bellaire often hide the screen in a soffit or a motorized drop, while Memorial and River Oaks remodels usually keep a fixed frame wall and a dedicated rack. We measure ceiling height, throw distance and seating position before naming a model. For the AVR-X4800H specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Bellaire, Memorial, River Oaks, The Heights, West University Place, Sugar Land, Spring Branch.
Specifications
Multichannel Surround
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
|---|---|
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 11.4 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
|---|---|
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Audyssey LFC | Yes |
| Dirac Live Upgradability | Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Pandora | Yes |
| SiriusXM | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 7, No |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, 1 |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Frame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
Multi-room CI
| Multi-Room Zones | 3 |
|---|---|
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Remote In / Out | Yes, Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
|---|---|
| Front Display | 2-Line FLD |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
Inputs Outputs
| HDMI In, Out | 7, 3 |
|---|---|
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analog In, Out | 5, No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 2 |
| Multi-Room Out: Analog, Digital | 2, No |
| Multichannel Pre-out | Yes (11.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 9 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235W |
General
| Metal Front Panel | Yes |
|---|---|
| System Remote Control | RC-1252 |
| Pre-Programmed, Learnable, LCD Display | Yes, No, No |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W/110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) [ 17.1 x 14.9 x 6.6 ] |
| Weight in LBS | 29.1 |
| Weight in LBS (Packaging) | 34.9 |
Features
- 9.4 channels
- 125 watts per channel
- 8K Ultra HD
- 3D Audio
- Powered by HEOS
- Dirac Live Ready
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
